Price range: $339.65 through $365.74 -
- Brand Name: YOUYAN
- High-concerned chemical: None
- Origin: Mainland China
- Is Batteries Included: Yes
- communication: Wireless
- Feature: Noise Cancelling, Portable, With LED Lights, Light-weight
- type: Dynamic Microphone
- model number: SKM9000-5
- place of origin: Guangdong, China
- frequency response rate: 40Hz~18KHz
- material: Metal, Aluminium Alloy
- Maximum SPL: 110 dB
- polar pattern: Omni-directional, Cardioid
- private mold: Yes
- sensitivity: -45db±2db
- signal to noise ratio: 105DB
- Frequency range: 530MHZ-589.7MHZ
- Modulation: FM
- Number of channels: 200
- Channel spacing: 300KHZ
- Frequency Stabilization: +0.005%
- Dynamic range: 100DB
- Maximum offset: +45KHZ
- Audio frequency response: 40HZ-18KHZ(±2DB)
- Integrated signal-to-noise ratio: >105DB
- Comprehensive distortion: ≥ 0.5%
#detail_decorate_root .magic-0{width:750px}#detail_decorate_root .magic-1{overflow:hidden;width:750px;height:300px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-2{margin-top:0;margin-left:0;width:750px;height:300px}#detail_decorate_root .magic-3{border-bottom-style:none;border-bottom-color:#c4433c;font-family:Roboto;font-size:24px;color:#000;background-color:#c4433c;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-4{width:750px;border-collapse:collapse}#detail_decorate_root .magic-5{min-height:18px;padding:5px 10px;width:727px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-6{text-align:center}#detail_decorate_root .magic-7{display:none}#detail_decorate_root .magic-8{min-height:18px;padding:5px 10px;width:374px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-9{min-height:18px;padding:5px 10px;width:333px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-10{min-height:18px;padding:5px 10px;width:373px;min-height:18px;box-sizing:content-box}#detail_decorate_root .magic-11{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-12{margin-bottom:0}#detail_decorate_root .magic-13{position:relative;width:100%}#detail_decorate_root .magic-14{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-15{overflow:hidden;width:750px;height:791px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-16{margin-top:0;margin-left:0;width:750px;height:825.75px}#detail_decorate_root .magic-17{overflow:hidden;width:750px;height:1012.09341117598px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-18{margin-top:0;margin-left:0;width:750px;height:1012.09341117598px}#detail_decorate_root .magic-19{vertical-align:top}#detail_decorate_root .magic-20{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-21{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-22{padding:0;margin:0;white-space:pre-wrap;font-size:14px}
Product Description
|

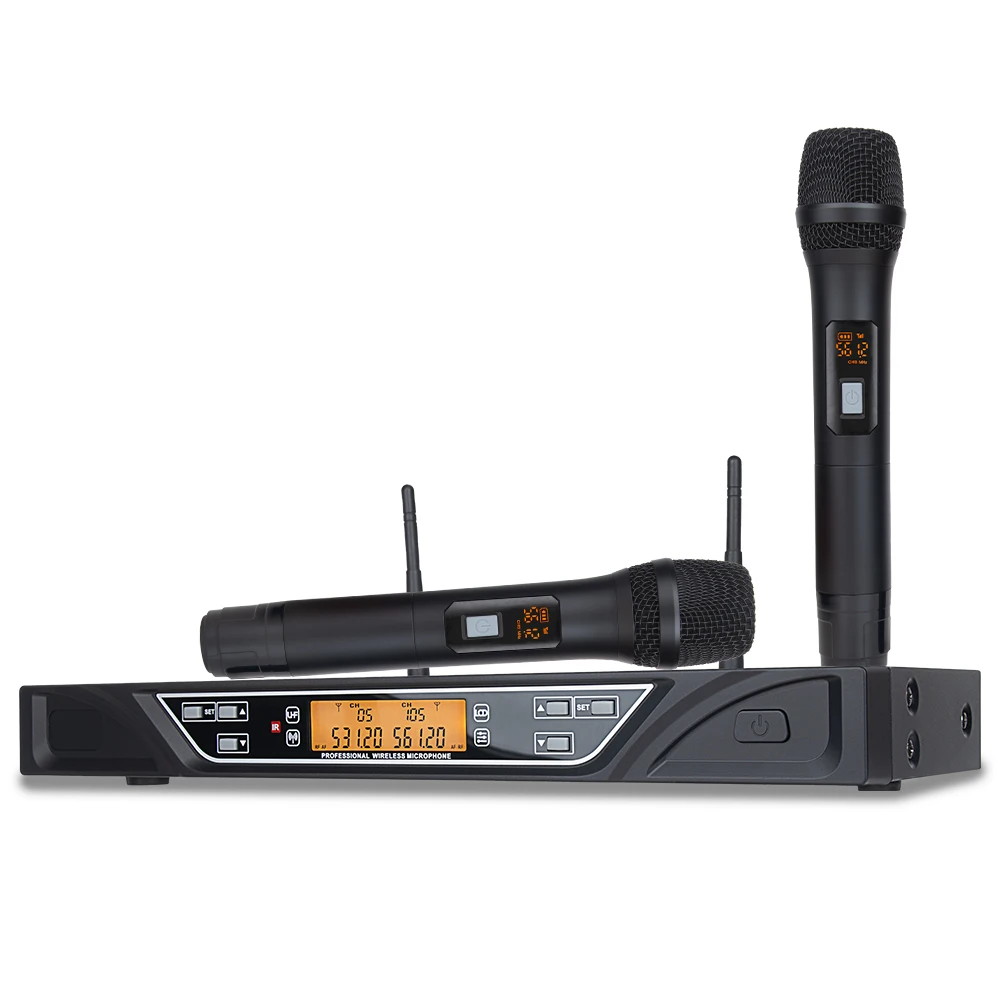

Model：SKM9000
|
|
|
|

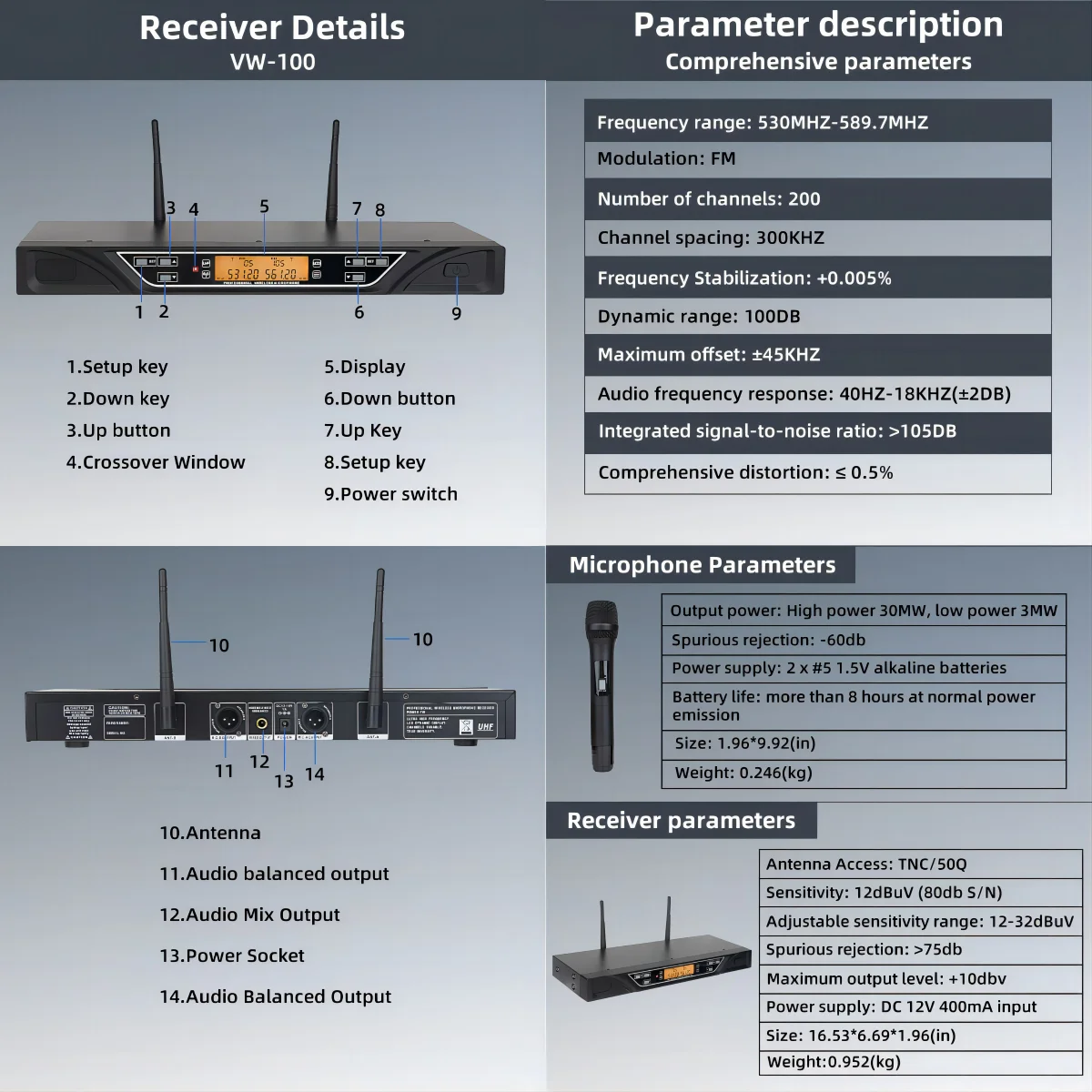

Parameter description
Comprehensive parameters
|
|
|
|
Frequency range:
|
530MHZ-589.7MHZ
|
|
|
Modulation:
|
FM
|
|
|
Number of channels:
|
200
|
|
|
Channel spacing:
|
300KHZ
|
|
|
Frequency Stabilization:
|
+0.005%
|
|
|
Dynamic range:
|
100DB
|
|
|
Maximum offset:
|
+45KHZ
|
|
|
Audio frequency response:
|
40HZ-18KHZ(±2DB)
|
|
|
Integrated signal-to-noise ratio:
|
>105DB
|
|
|
Comprehensive distortion:
|
≤ 0.5%
|
|
|
Microphone Parameters
|
Receiver parameters
|
|
|
1.Output power: High power 30MW, low power 3MW2.Spurious rejection: -60db
3.Power supply: 2 x#5 1.5V alkaline batteries 4.Battery life:more than 8 hours at normal power emission 5.Size: 1.96*9.92(in) 6.Weight: 0.246(kg) |
1.Antenna Access:TNC/50Q 2.Sensitivity:12dBuV(80db S/N)
3.Adjustable sensitivity range:12-32dBuV 4.Spurious rejection: >75db 5.Maximum output level: +10dbv 6.Power supply: Dc 12V 400mA input 7.Size:16.53*6.69*1.96(in) 8.Weight:0.952(kg) |
|
