16- Channel 48V Bluetooth Audio Mixer| Studio Sound Mixers| Karaok DJ Console Mixing Console

16- Channel Bluetooth Audio Mixer| Studio Sound Mixers| Karaok DJ Console Mixing Console

Application

It is suitable for home KTV, music recording, webcasting, campus events, broadcasting, weddings, conferences, bars, stage performances, music restaurants, music festivals, recording studios, parties, and so on.

Specification

Color: Black

Material: Metal

Mounting Type: Tabletop

Assembly Required: No

Power Source: Corded

Plug Type: US Standard

Adapter Input: AC100-240V, 50/60Hz, 2A(MAX)

Adapter Output: DC8V, 2A

Number of Channels: 16

Max. Input Level: +24dBu(MIC/Line)

Max. Output Level: +26dBu(XLR)

Main Level Meter: 10 Segment LED, -24dB to CLIP

Frequency Response: 20Hz to 30KHz ±0.5dB

Max. Input Power: 15W

Total Wave Distortion(THD+N): ＜0.01%(Channel Input to Mix Output)

Crosstalk(1kHz): ＞85dB(Fader Off); ＞82dB(Inter Channel)

Noise (22Hz to 22KHz): Equivalent Input Noise -122dBu, Residual Output Noise <-90dBu

Mono/Stereo Channel EQ: High Frequency, Broom Type, +/-15dB, 12KHz; Low Frequency, Broom Type, +/-15dB, 80KHz; Hi-Mid Frequency, Peak Valley Type, +/-15dB, 2.5KHz

2-track Return: RCA, Unbalanced, 4K ohm, -2dBu

2-track Send: RCA, Unbalanced, ＜75 ohm, -2dBu

L/R Output: XLR Unbalanced, Tip Hot, ＜75 ohm, +4dBu, Max.+22dBu

FX/AUX Output: TRS, Unbalanced, Tip Hot, ＜75 ohm, -2dBu, Max.+18dBu

Headphones: TRS, Tip L, Ring R, 30 to 600 ohm Headphones Recommended

Mono Channel:

XLR Balanced, Pin 2 Hot, 2K ohm, Sensitivity -60 to +14dBu

TRS Balanced, Tip Hot, 10K ohm, Sensitivity -40 to +14dBu

XLR Phantom Power + 48V

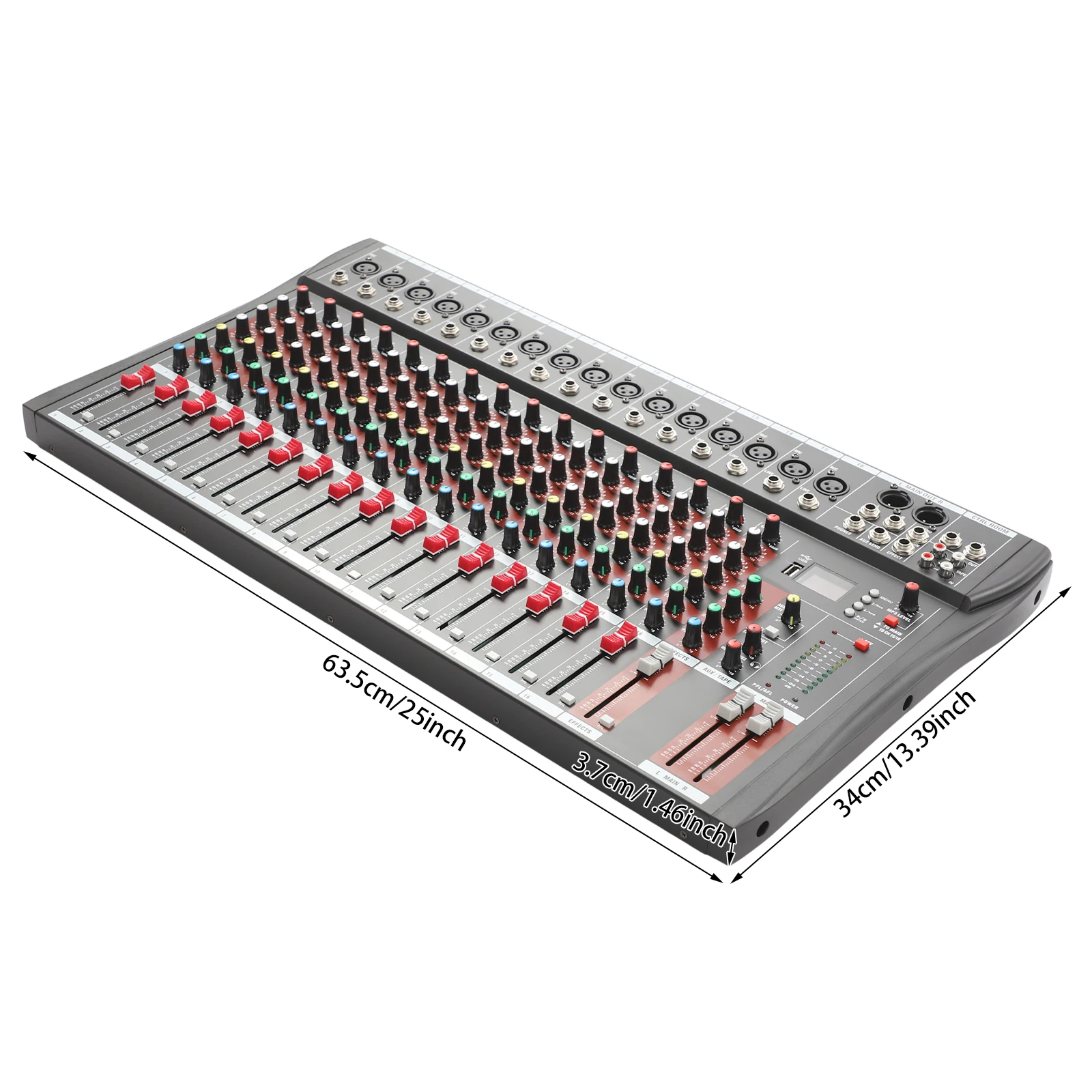

Product Size: 63.5*34*3.7cm/25*13.39*1.46 in

Package Size: 67*12*43cm/26.38*4.72*16.93in

Gross Weight: 7kg/15.43lbs

Net Weight: 6.65kg/14.66lbs

Key Features

Selected Materials: It is mainly made of high-class metal, which makes the product wear-resistant, rust-resistant, and not easy to age or deform, ensuring long-lasting excellent performance.

Multi-channel Input: It features 16 channels with six built-in music styles (Nature, Pop, Rock, Jazz, Classical, and Country), a three-frequency equalizer, and high/medium/bass adjustments, which allow for fine processing of a wide range of audio signals for great sound quality.

Real-time Monitoring: Its headphone jack allows you to access headphones (not included) to monitor the electrical frequency signal of each channel in real-time, feel the excitement of live music with the audience, and allows you to adjust the sound channel in a timely and precise manner to obtain more desirable results.

Tuning Partner: It is equipped with high-precision 20Hz-30kHz frequency response to ensure professional sound quality. It can also be connected with Bluetooth, computers, tablets, etc. to provide you with mobile karaoke or music production functions!

48V Phantom Power: When you use condenser microphones that need to be powered up (not included) to create an auditory feast as well as drive the live atmosphere, this phantom power with higher frequency and sound quality is available to you.

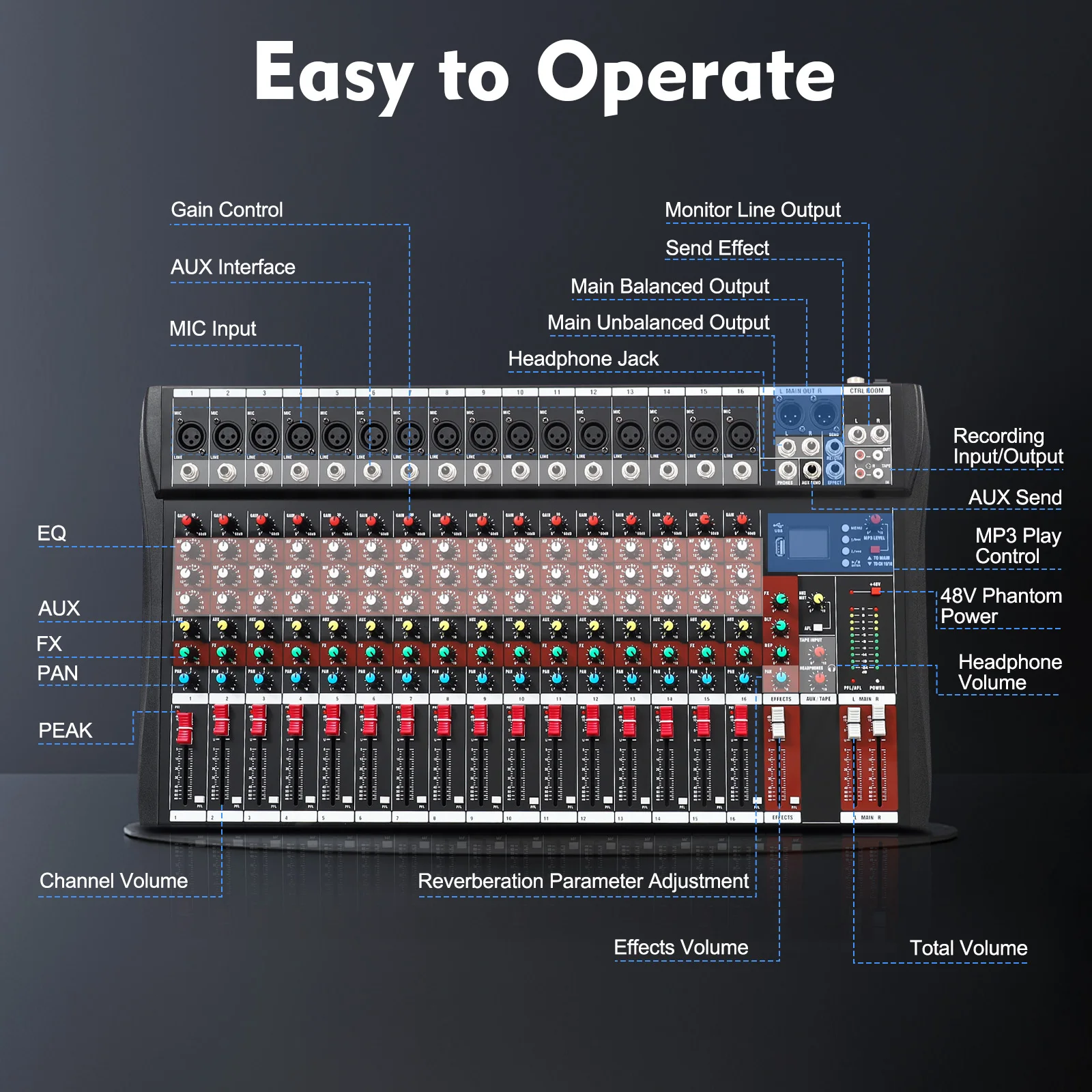

Easy to Operate: Its simple and easy-to-use control panel and bright LED screen allow you to easily get started and become a professional mixer!

Compact and Lightweight: Because of its compact size(25*13.39*1.46 inches) and lightweight(14.66 lbs), you can easily carry and store it.

Ideal Gift: Thanks to its practicality and powerful features, you can give it as a Christmas, Thanksgiving, or Halloween gift to your music-loving friends!

Description

A versatile 16-channel audio mixer can give you a professional-grade listening feast and enjoy an amazing musical atmosphere. With high-precision audio resolution and accurate vocal adjustment, it can make the sound delicate and full. Its simple operation and high compatibility make it suitable for a variety of scenes.

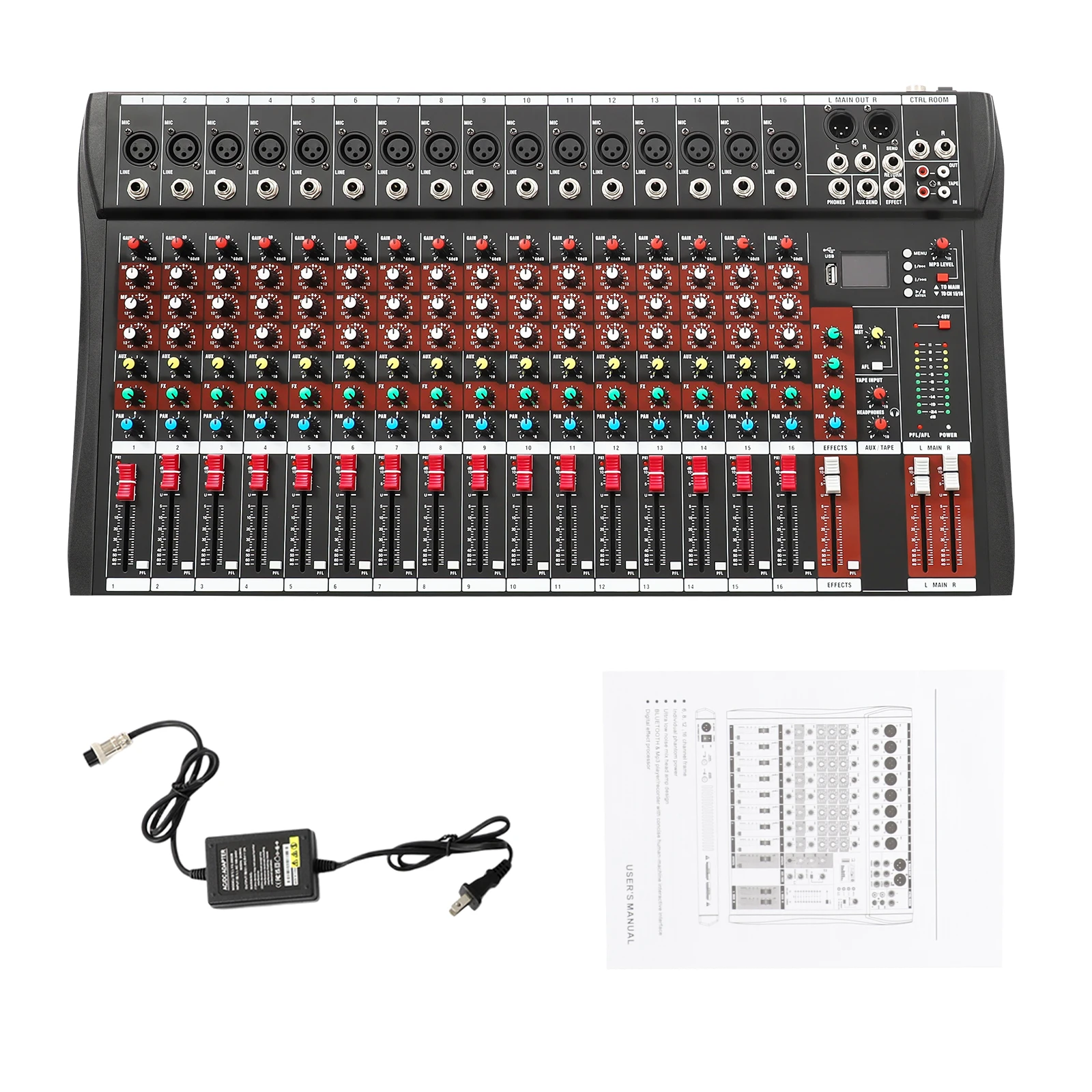

Package Included

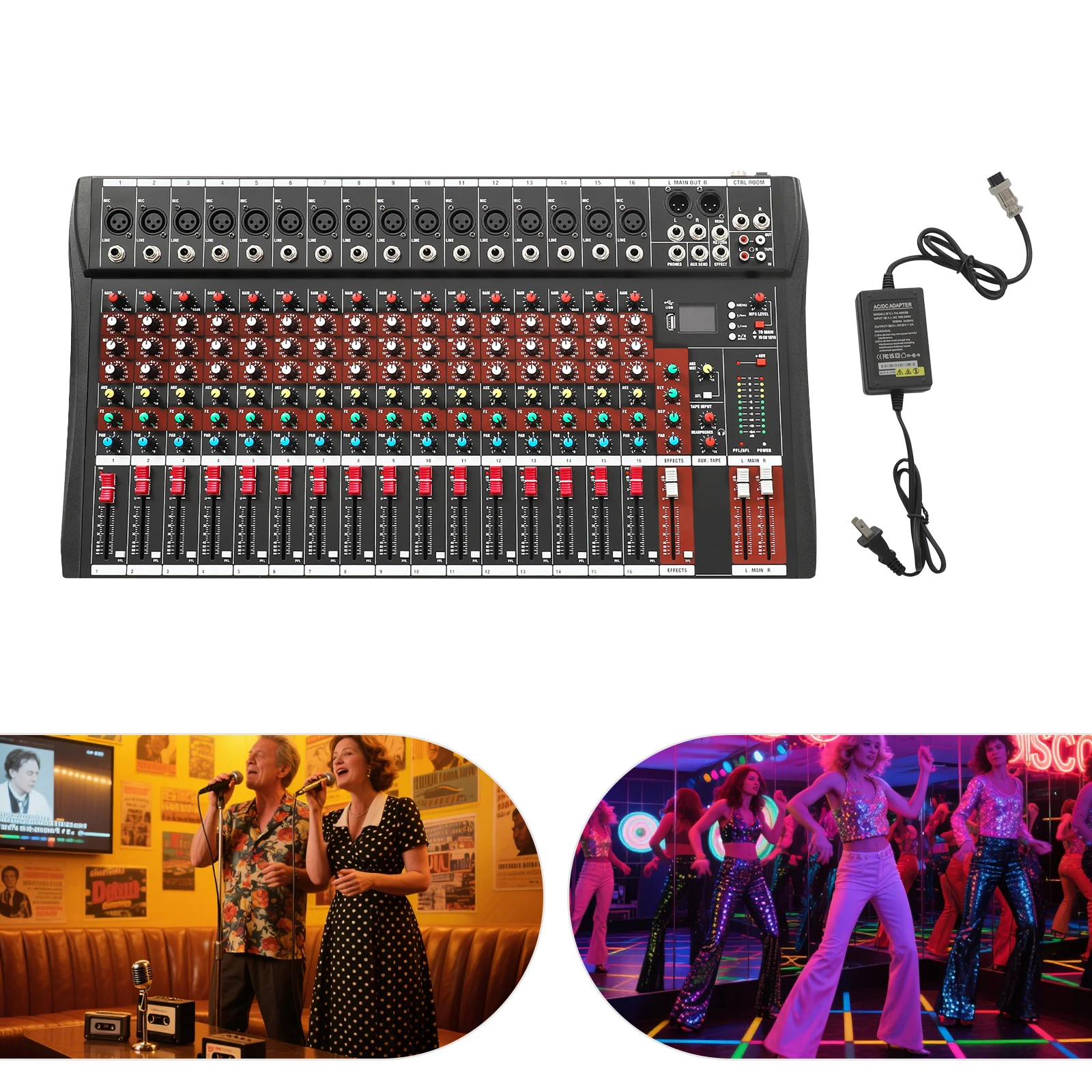

1* 16-channel Audio Mixer

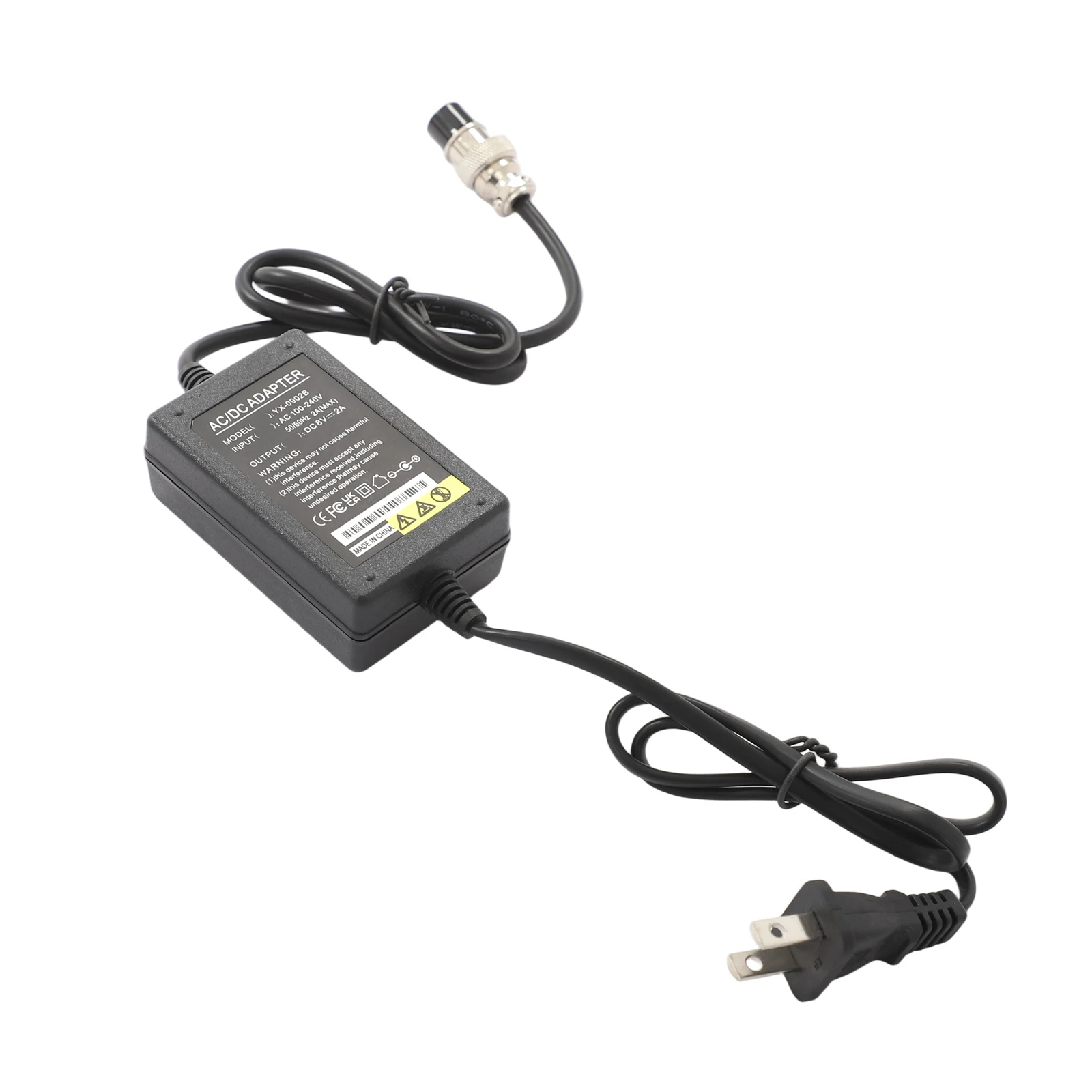

1* Power Adapter

1* English Manual

Details

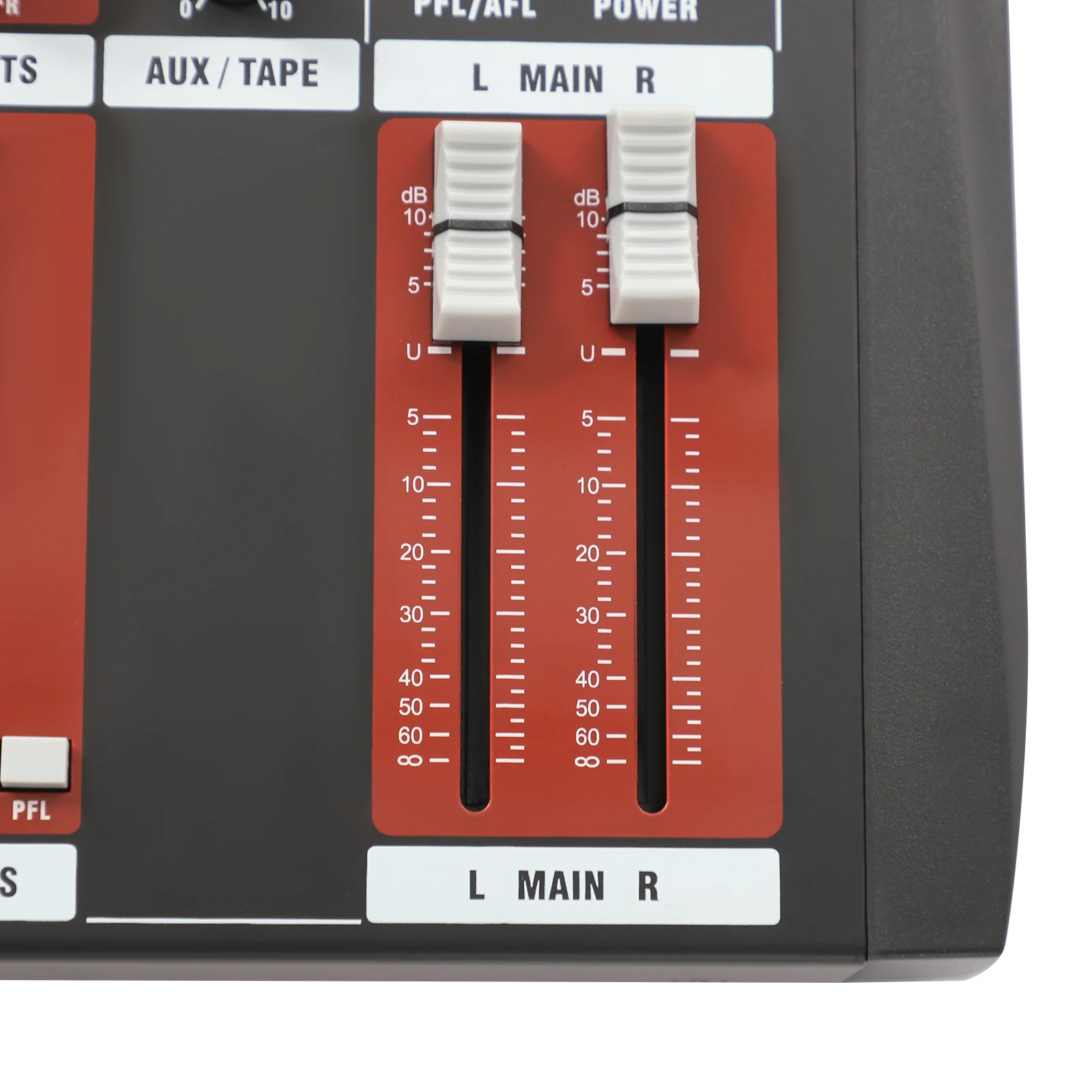

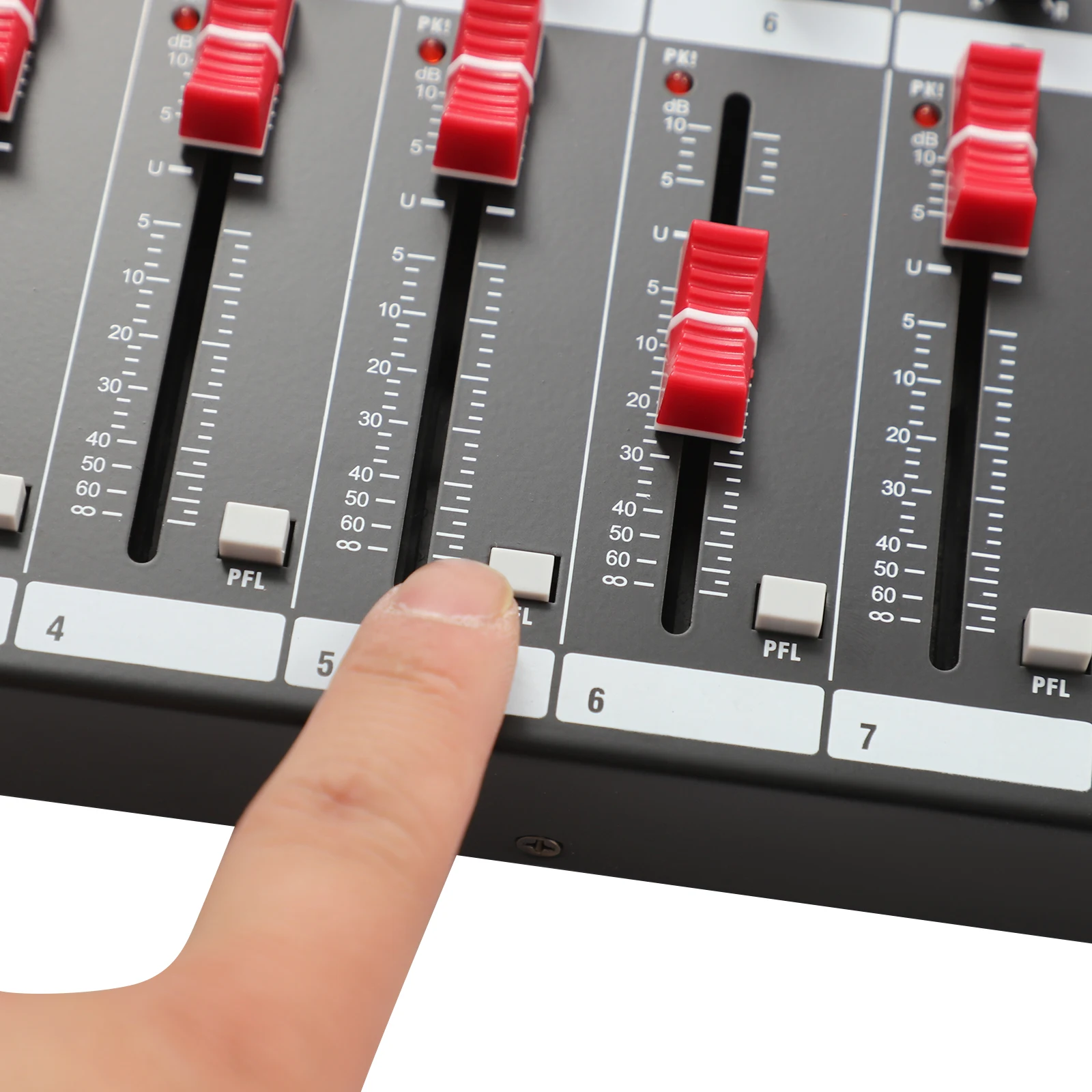

Extended Slide Faders: They are non-slip to use, have a longer lifespan, and allow for more precise tuning.

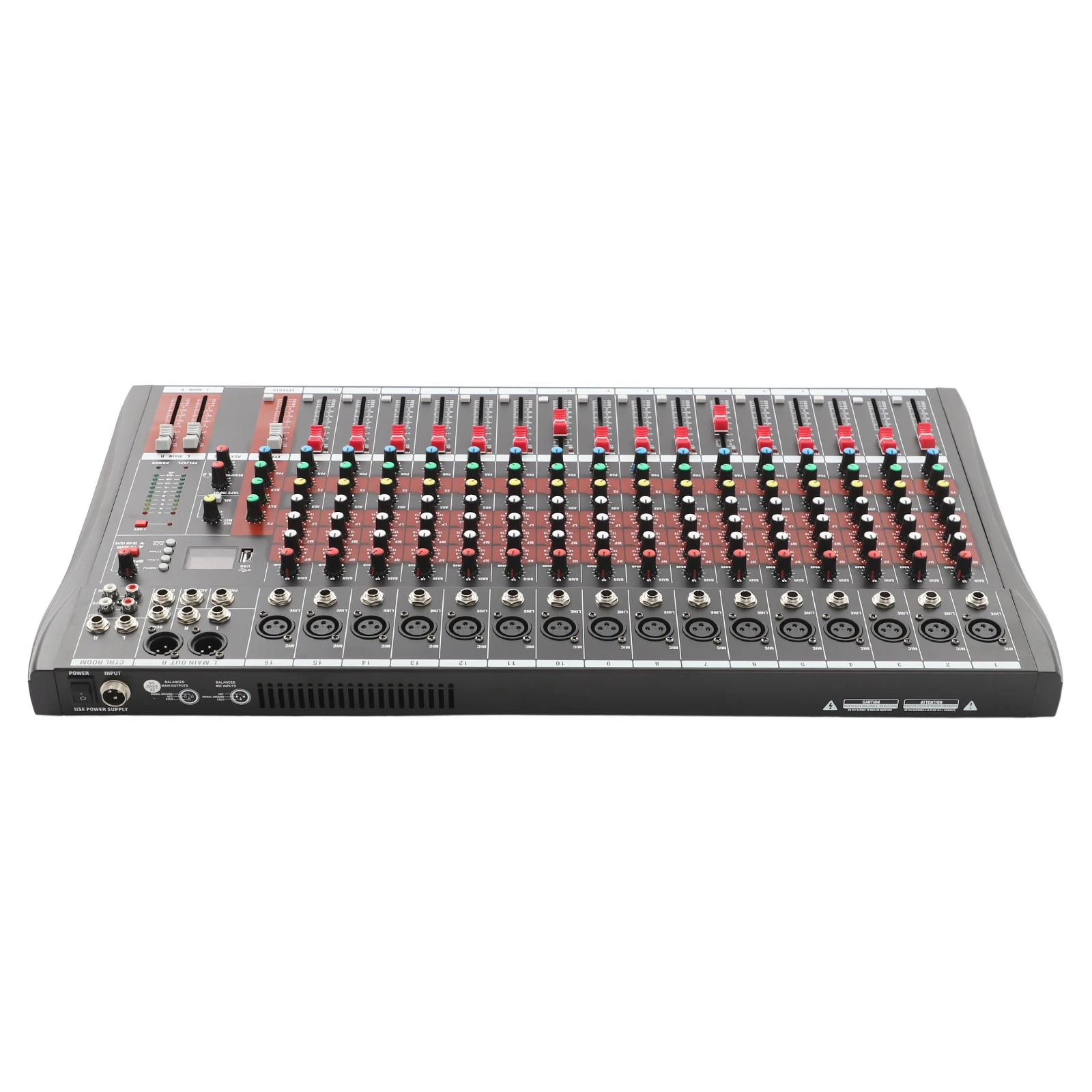

Multiple Interfaces: They allow for fine connections to other devices with stable transmission and less distortion.

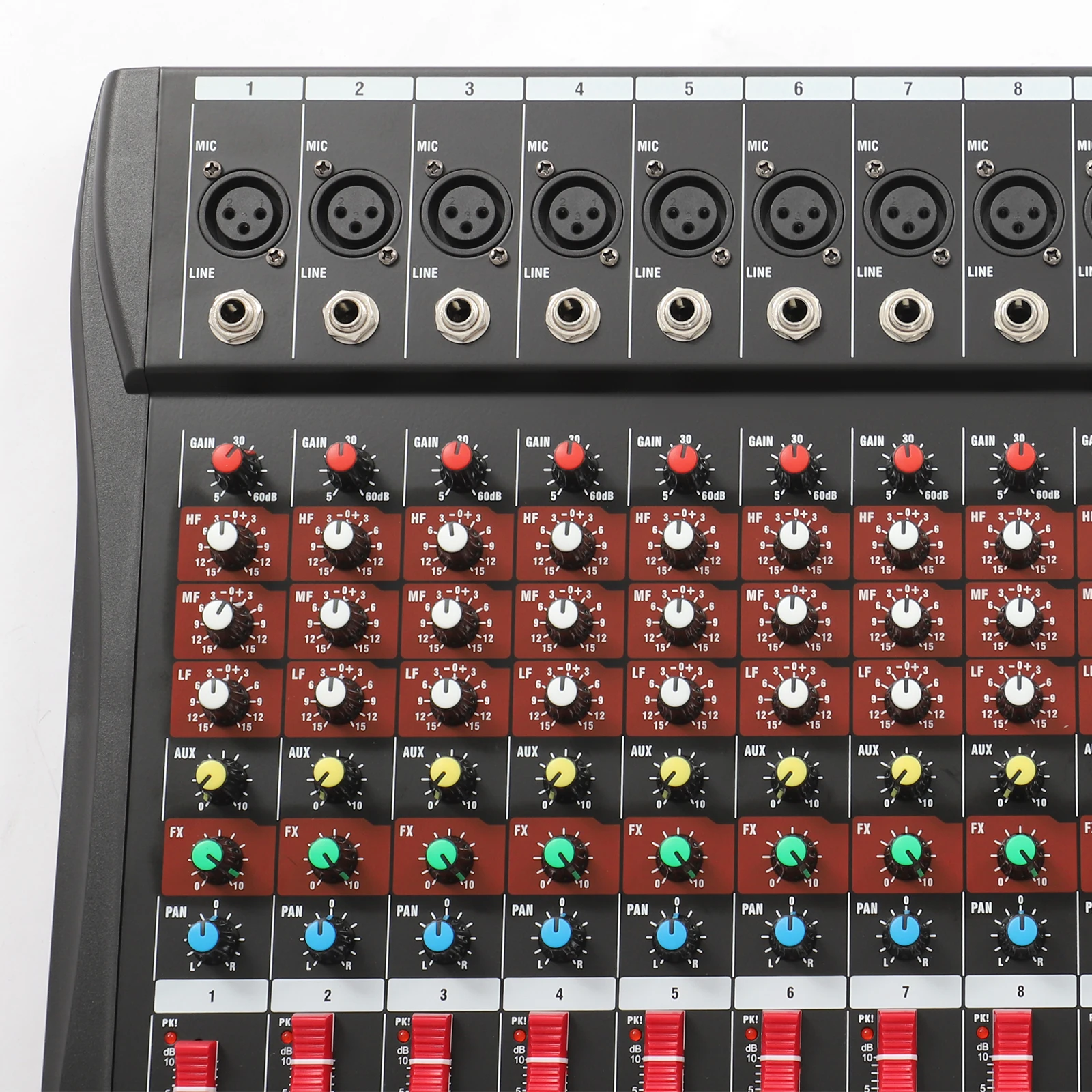

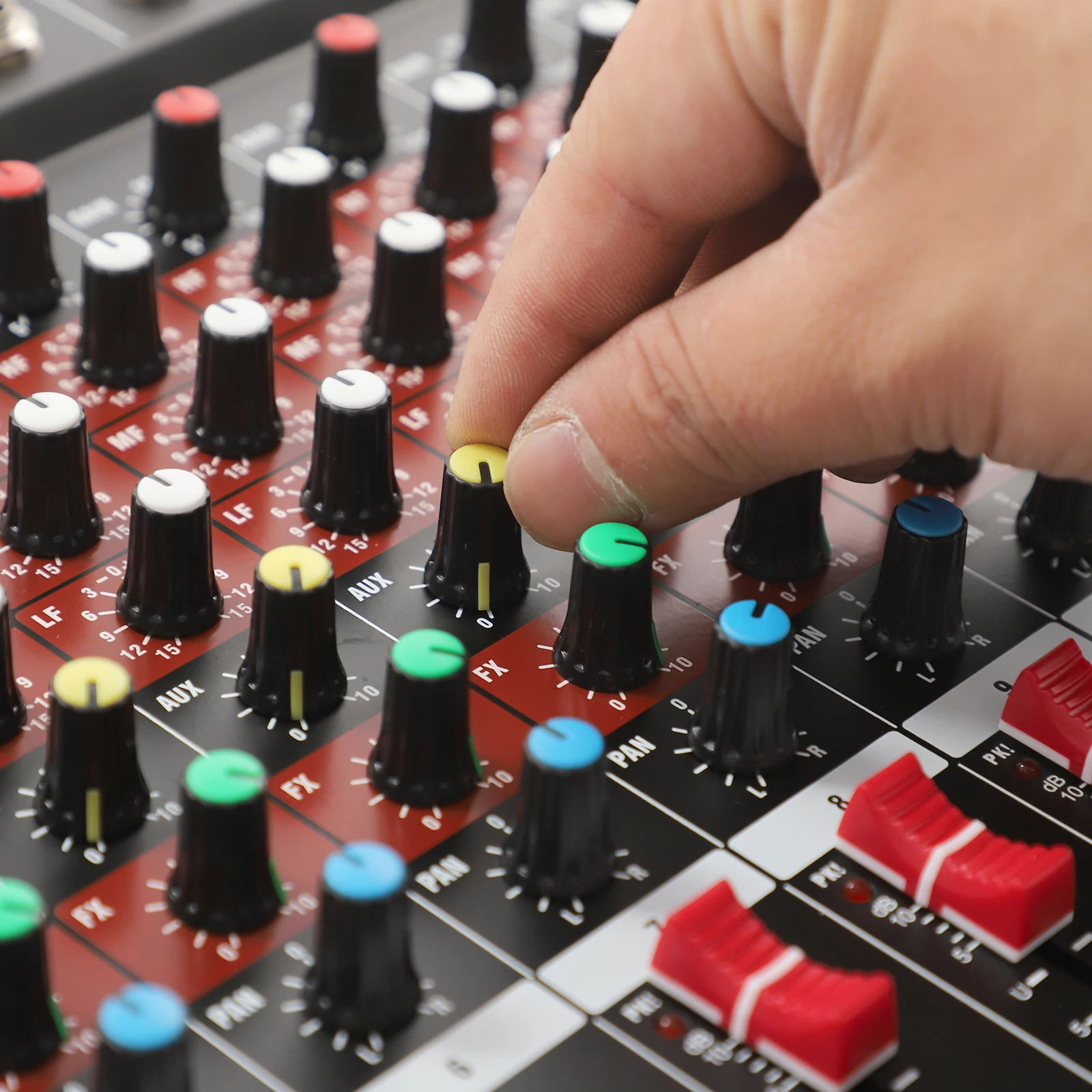

Comfortable Knobs: These knobs allow for a comfortable feel and finer adjustment.

Clear Indicators: Even in the dark environment of KTV, etc., they show you the work conditions clearly.

Heat Dissipation Holes: The uniform heat dissipation holes facilitate timely heat dissipation to ensure the stability of the product operation.



Notes

1.When connecting an electric instrument, condenser speaker, etc.(not included), please turn on the switch after connecting the instrument(turn off the switch before disconnecting).

2.Please minimize all volume levels before connecting or disconnecting external devices.

3.Please read the operating manual and product label completely before use. And pay particular attention to the safety instructions included.

4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement. Please make sure you do not mind before you order.
